Design P. 15kg/cm² Operating P. 10kg/cm²
Design T. 100˚C Operating T. 75˚C
Material：SUS304 SUS316 SUS316L
O-ring ：EPDM/VITON/NBR/SILICONE
Surface finished：Acid-Washing,Electrolyze and Other unique surface finished.

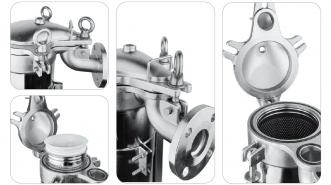

●Patented Top cover with one piece design, unique design for top-loading bag filter housing.
●Lifting-cover type could be fasten on the housing, saving the space, convenience and safety
●Independent o-ring connection reducing the leaking and stabling filtration quality
●Flowing from upper side and flush the liquid directly. In this way, would not need the pressure plate and make sure the filtration efficiency, its unique feature for Top-loading bag filter housing.
●Adjustable leg could be adjusted based on site pipeline
●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment
 |
|
|
BFU
|
1
|
4
|
50
|
10K
|
E
|
1
|
2
|
| Product code | Length of Bag | Material | In&Outlet size | In&Outlet type | O-ring Material | Interior surface finished | Exterior surface finished |
| 1-No.1 Bag 2-No.2 Bag |
4-304 6-316 |
50-2" | 10K-JIS 150P-ANSI PN10-DIN PF-BSPT-F BF-BSPF-F NF-NPT-F |
E-EPDM V-Viton N-NBR S-Silicone |
1-Acid-Washing 2-Electrolyze 3-Polishing |
1-Acid-Washing 2-Electrolyze 3-Polishing |
|
Weight
|
Detail
|
Length
|
Width
|
Height
|
Carton
|
Bubble Foam
|
|
40
|
BFU-1
|
370
|
600
|
850
|
YES
|
NO
|
|
48
|
BFU-2
|
370
|
600
|
1000
|
YES
|
NO
|
