Design P. 10kg/cm² Operating P. 7kg/cm²
Design T. 100˚C Operating T. 75˚C
Material：SUS304 SUS316 SUS316L
O-ring ：EPDM/VITON/NBR/SILICONE/TEFLON+VITON
Surface finished：Acid-Washing,Electrolyze and Other unique surface finished.

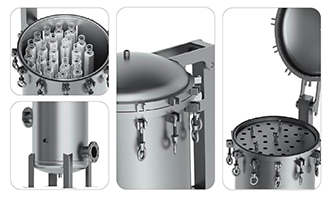

●Patented spring design has easy using function, offering more convenience when replace multi-cartridge.
●Modularized cartridge plate design, making cartridge-arrangement accuracy. It would not crooked when giving pressure from upper side.
●Pressure plate nut design could be fasten without using any tools.
●O-ring won't fall off when open spring type top cover, offering convenience and safety.
●Unique designed top cover for spring type multi-cargridges filter housing.
●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment
 |
|
|
21
|
TLS
|
3
|
CF
|
4
|
80
|
10K
|
E
|
1
|
2
|
| QTY of Cartridge | Product code | Length of Cartridge | Cartridge | Material | In&Outlet size | In&Outlet type | O-ring Material | Interior surface finished | Exterior surface finished |
| 21~81 | 3-30" 4-40" |
CF-DOE |
4-304 6-316 6L-316L |
50-2" 65-2-1/2" 80-3" 90-3-1/2" 100-4" 125-5" 150-6" |
E-EPDM V-Viton N-NBR S-Silicone |
|
Detail
|
Carton
|
|
21~81TLS
|
N/A
|
