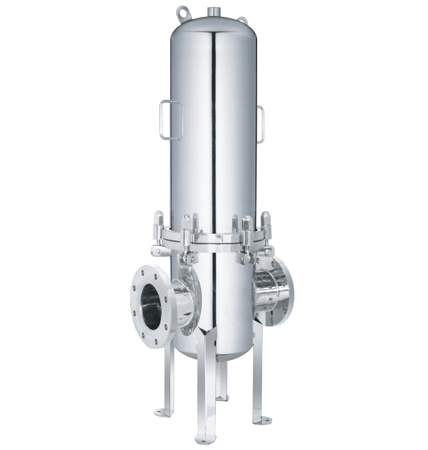

Multi-Cartridges Air Filter Housing
RA
Multi-Cartridges Air Filter Housing

Design P. 10kg/cm²     Operating P. 7kg/cm²
Design T. 100˚C      Operating T. 75˚C

Material：SUS304 SUS316 SUS316L
O-ring   ：EPDM/VITON/NBR/SILICONE/TEFLON+VITON
Surface finished：Polishing,Electrolyze & Polishing(EP)

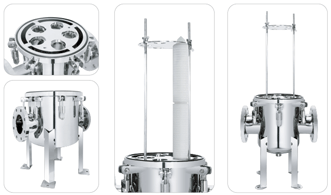

Multi-Cartridges Air Filter Housing
Features
●Correspondent with the highest sanitary standard code is available using in the pharmaceutical, food & beverage, harmless gas industry, etc.
●The special tight-fitting design of padlock and nut can with low installation and maintain cost, also replace the cartridges very easier.
●Designed for large air volume, RA series can maximize flow and minimize pressure drop.
●Inside and outside surface finish polished up to Ra 0.2μm, conform to sanitary grade.
●Easy to replace the cartridges with lifting lug design.
Applications

●Electronics

●Clean room

●Blow molding

●Odor removal

●Semiconductor

●Medical Industry

●Food & Beverage

●Aseptic packaging

●Chemical Industry

●Powder paint systems

●Pharmaceutical Industry

●Desiccant dryer after filter

●Compressed air system protection

●Plenum chamber for condensate handling

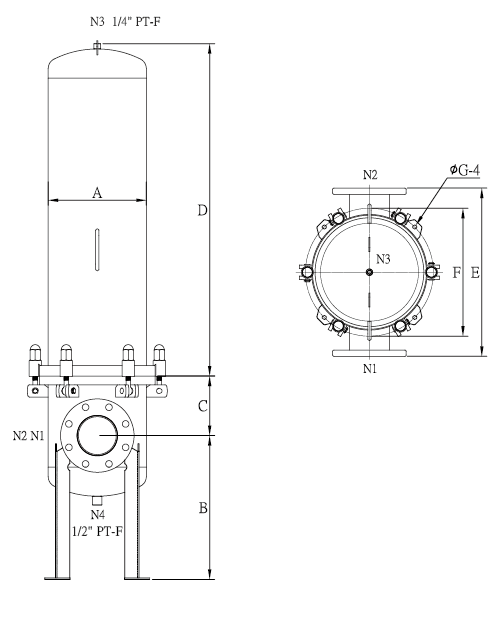

Specifications
Model
Length of Cartridge
A m/m
B m/m
C m/m
D m/m
E m/m
F m/m
N1/N2
G m/m
3~4RA
30"
Ø238
400
170
920
438
Ø320
4"
Ø12
5~7RA
30"
Ø280
400
170
948
480
Ø365
4"
Ø12
8~12RA
30"
Ø406
400
200
966
606
Ø516
4"
Ø14
13~19RA
30"
Ø486
450
315
981
686
Ø596
5"
Ø14
20~32RA
30"
Ø560
450
370
996
760
Ø704
6"
Ø18



Purchase Code
3RA
3
C5
6
100
10K
E
3
3
Product code Length of Cartridge Cartridge Material In&Outlet size In&Outlet type O-ring Material Interior surface finished Exterior surface finished
3~32 1-10"
2-20"
3-30" 		CF-DOE
C5-222+Fin
C7-226 		4-304
6-316
6L-316L 		100-4"
125-5"
150-6" 		10K-JIS
150P-ANSI
PN10-DIN
J-Clamp
PF-BSPT-F
BF-BSPF-F
NF-NPT-F 		E-EPDM
V-Viton
N-NBR
S-Silicone
TV-Teflon+Viton
 3-Polishing
4-Electrolyze&
Polishing(EP)
 3-Polishing
4-Electrolyze&
Polishing(EP)

Packing Detail
Detail
Carton
3~32RA
N/A
