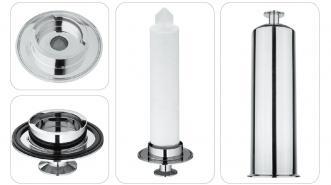

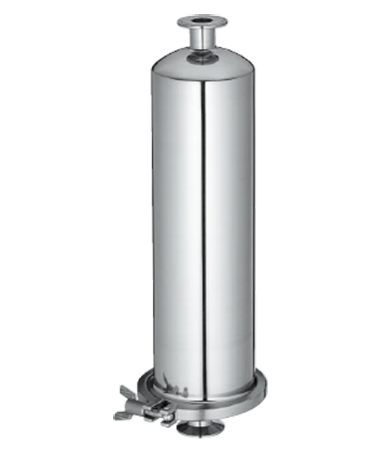

Single Cartridge In-Line Air Filter Housing
RI
Single Cartridge In-Line Air Filter Housing

Design P. 10kg/cm²     Operating P. 7kg/cm²
Design T. 100˚C      Operating T. 75˚C

Material：SUS304 SUS316 SUS316L
Gasket  ：EPDM/VITON/SILICONE/TEFLON+EPDM
Surface finished：Polishing,Electrolyze & Polishing(EP)

Single Cartridge In-Line Air Filter Housing
Features

●Inside and outside surface finish polished up to Ra 0.2μm, conform to sanitary grade.

●Taking apart without tools with patented clamp, making easy to maintain.

●Forged bottom to increase the pressure resistance, not easily deformed.

●Smooth surface without dead angle and bacterial residue.

●Easy piping with aligned design of inlet & outlet.

●Lightweight, small size, save installation space.

Applications

●Electronics

●Clean room

●Blow molding

●Odor removal

●Semiconductor

●Medical Industry

●Food & Beverage

●Aseptic packaging

●Chemical Industry

●Powder paint systems

●Pharmaceutical Industry

●Desiccant dryer after filter

●Compressed air system protection

●Plenum chamber for condensate handling



Specifications
Model
Length of Cartridge
A m/m
B m/m
C m/m
1RI1
10"
Ø101.6
384
43.5
1RI2
20"
Ø101.6
639
43.5
1RI3
30"
Ø101.6
894
43.5



Purchase Code
1RI
1
C5
4
25
J
E
3
3
Product code Length of Cartridge Cartridge Material In&Outlet size In&Outlet type Gasket Material Interior surface finished Exterior surface finished
1-10"
2-20"
3-30" 		CF-DOE
C5-222+Fin
C7-226 		4-304
6-316
6L-316L 		15-1/2"
20-3/4"
25-1"
40-1-1/2"
50-2"
10K-JIS
150P-ANSI
PN10-DIN
J-Clamp
PF-BSPT-F
BF-BSPF-F
NF-NPT-F 		E-EPDM
V-Viton
S-Silicone
TE-Teflon+EPDM 		3-Polishing
4-Electrolyze&
Polishing(EP) 		3-Polishing
4-Electrolyze&
Polishing(EP)

Packing Detail
Detail
Weight
Length
Width
Height
Carton
Bubble Foam
1RI1
3.5
165
165
475
YES
YES
1RI2
4.8
165
165
725
YES
YES
1RI3
6.2
165
165
980
YES
YES
