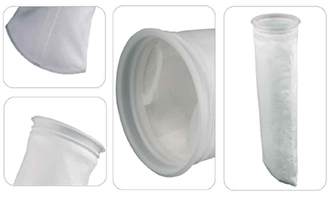

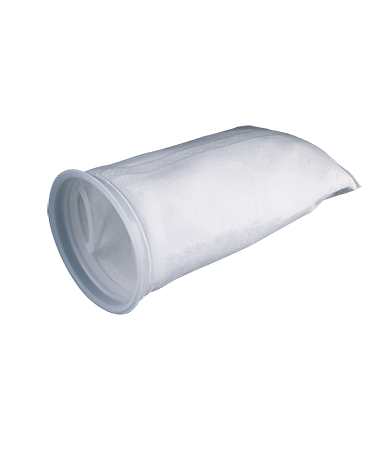

PP Filter Bag
PP
PP Filter Bag
Material: Polypropylene
Seal Ring: Polypropylene, SS304 stainless,  galvanized iron
Sizes: No.1-7"x17"/ No.2-7"x32"/ No.3-4"x14"/ No.4-4"x20"
Micron Rating: 5丶10丶25丶50丶75丶100丶150丶200丶300μm
Max Operating T.: ≤90℃
  • Print
PP Filter Bag
Features
Various application in liquid filtration.
Effectively intercept solid particles by using ultrasonic welding structure at the bottom of bag (No hole).
Compliant with FDA certification.
Applications
General industrial or household using for liquid filtration.
Specifications



Purchase Code
M
PP
2
10
F
Product code Material Length of Bag Micron Rating Style
PP-Polypropylene 1 - No.1 Bag
2 - No.2 Bag
3 - No.3 Bag
4 - No.4 Bag 		05 - 0.5μm
1 - 1μm
5 - 5μm
10 - 10μm
25 - 25μm
50 - 50μm
75 - 75μm
100 - 100μm
150 - 150μm
200 - 200μm
300 - 300μm 		F - F Type(PP)
G -G Type(PP)
4 - 304SST
6 - 316SST

Packing Detail
