Stainless Steel
SS
Stainless Steel

Model: Stainless steel

Material: SUS 316

End cap: DOE、222、226

Operating Temp: Can up to 450°C( special order)

  • Print
Stainless Steel
Features

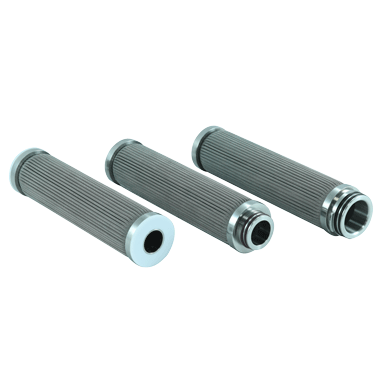

Stainless steel filter cartridges is made of 316, multi-layer filter structure can efficiency filter the liquid also extend the usage of the cartridge.
Stainless steel filter cartridge can be repeated cleaning , it's an efficient and stable filtration options.
Applications
●Corrosive and gas filtration
●Agrochemical raw materials, chemical solvents purification treatment
●Pure water, deionized water purfication filter
●Mechanical oil, heavy oil, fuel oil, filtration
●Steam, gas filtration
●Wine, food , beverage filtration.
Specifications



Purchase Code
S
SS
5
2
C5
S2
E
6
Product code Model Length of Cartridge Micron Rating End Cap option Style Oring Material
SS 5-5"
10-10"
20-20"
30-30"
40-40" 		2-2um
5-5um
10-10um
25-25um
60-60um
100-100um
Other micron rating please contact with SYS. 		CF-DOE
C5-222
C7-226 		S2-Flat E-EPDM
T-Teflon
V-Viton
S-Silicone 		6-316

Packing Detail
