Fiber Pleated
SP

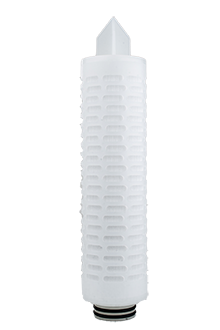

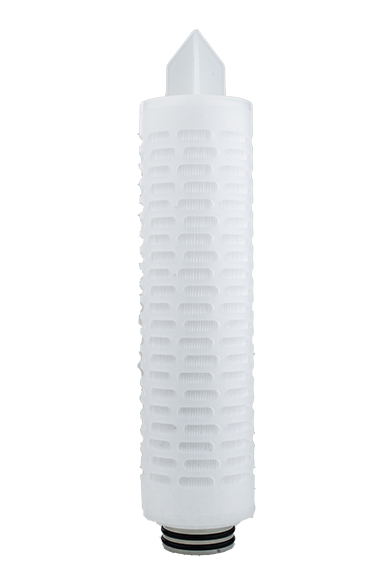

Fiber Pleated

Material: Polypropylene

Optional: EPS-(Polyethersulfone/Nylon/PTFE-Hydrophobic PTFE)

End cap: DOE、222 flat/fin、226 flat/fin

Operating Temp: 80°C (180°F)

Fiber Pleated
Features
Membrane Pleated filter cartridge is made of Polypropylene.
It's a typical filter media, with high efficiency and high precision. Therefore, it can be used in industrial processes.
The multi-layer filter design can enforce the filtration sctucture of the filter material, and can maintain the efficiency of the filtration.
Applications
●Heavy oil, fuel oil filtration.
●Sterile water, ultra-pure water before the filter processing.
●Electroplating solution filtration.
●Chemical process of acid-base liquid filtration.
●Corrosive gas filtration treatment.
●Process gas and compressed air filtration.
Specifications



Purchase Code
S
SP
5
1
C5
S1
E
P
Product code Model Length of Cartridge Micron Rating End Cap option Style Oring Material
SP 5-5"
10-10"
20-20"
30-30"
40-40" 		02-0.2um
045-0.45um
1-1um
30-30um
100-100um
CF-DOE
C5-222
C7-226 		S1-Fin
S2-Flat 		E-EPDM
T-Teflon
V-Viton
S-Silicone 		P-PP
PES-Polyethersulfone
N-Nylon
PTFE-Hydrophobic PTFE
