Melt Blown
SB
Melt Blown

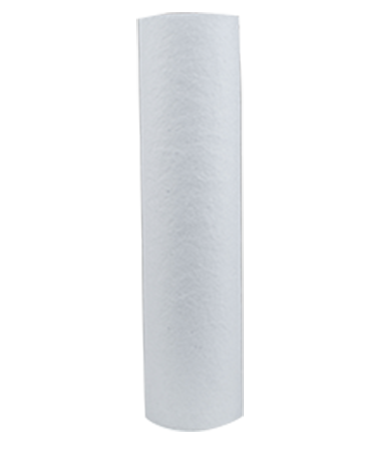

Model: Melt Blown

Material: Polypropylene

End cap: DOE、222 flat/fin、226 flat/fin

Operating Temp: 60°C (140°F)

  • Print
Melt Blown
Features
PP material was made by high temperature, with the different forming speed and the distance between the wire to control the filter fiber tightness.
SYS standard PP cartridge was made by double layer structure design,  and it's formed by high temperature and high pressure.
The cartridge is characterized by the structure of outer and inner density. This cartridge can prevent the pollution from getting into the inside cartridge.
Applications
● PCB of liquid filtration
● Electroplating solution filtration
● Removal of free chlorine and volatile organic compounds in solution
● Drinking water, RO pure water filtration treatment.
● Treatment of wastewater condensate.
Specifications



Purchase Code
S
SB
5
1
C5
S1
E
Product code Model Length of Cartridge Micron Rating End Cap option Style Oring
SB 5-5"
10-10"
20-20"
30-30"
40-40" 		1- 1um
10-10um
50-50um
100-100um
200-200um 		CF-DOE
C5-222
C7-226 		S1-Fin
S2-Flat 		E-EPDM
T-Teflon
V-Viton
S-Silicone

Packing Detail
