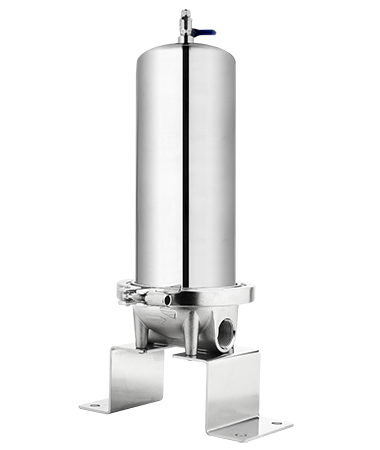

Lightweight Whole House Filter Housing
FR
Lightweight Whole House Filter Housing

Design P. 7kg/cm²   Operating P. 5kg/cm²
Design T. 75˚C          Operating T. 40˚C

Material：SUS304
O-ring   ：EPDM/VITON/NBR/SILICONE
Surface finished：Acid-Washing and Other unique surface finished.

Lightweight Whole House Filter Housing
Features
●Lightweight whole housing filter housing only 0.7 kg by integrated processing.
●Simple, easy to operate, suit for family use.
●Made by domestic SUS 304 material, suitable for running water filtration application.

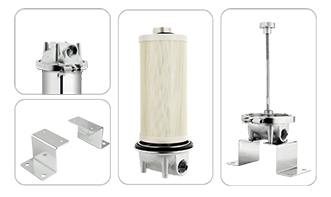

●User-friendly design with our exclusive clamp design, disassembly and assembly without tools, easy to clean or replace the cartridge.
●Legs/ hanger 2 in 1 function can be used depending on the environment, can be hanging or standing.
●Large flow and high production capacity.
●Surface finish is polished process, without stained, beautiful and elegant.











Applications

●Water

●Groundwater

●Food Industry

●Beverage Industry

●Environmental Industries

●Electronic Industry

●Machinery oil

●Electroplating Industry

●Petrochemical Industry

●Pool

●Unique liquid filtration

●Industrial wastewater treatment

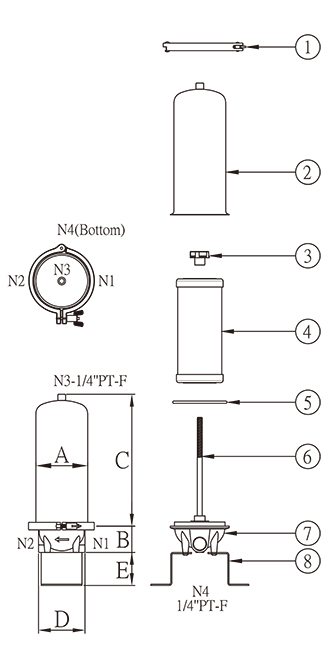

Specifications
E m/m
Model
Length of Cartridge
A m/m
B m/m
C m/m
D m/m
81
FR-1
10"
Ø127
64.5
323
114



Purchase Code
FR
1
4
25
PF
E
5
3
Product code Length of Cartridge Material In&Outlet size In&Outlet type O-ring Material Interior surface finished Exterior surface finished
1-10'' 4-304 25 - 1" PF-BSPT-F
BF-BSPF-F
NF-NPT-F 		E-EPDM
V-Viton
N-NBR
S-Silicone 		5-Burnishing 3-Polishing

Packing Detail
Detail
Weight
Length
Width
Height
Carton
Bubble Foam
FR1
4.5
210
210
440
YES
NO
