Design P. 16kg/cm² Operating P. 10kg/cm²
Design T. 70˚C Operating T. 40˚C
Material：SUS304 SUS316
Head Material： SUS304 SUS316 Nylon 6-PA30
Clamp Type：One piece type by Precision casting/ Two pieces type
Surface finished：Polishing,Electrolyze and Other unique surface finished.

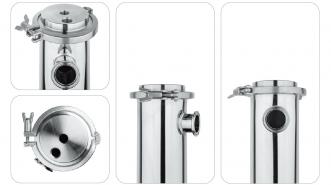

●Using two clamps to fix two sides of head, easy to install and easy to clean.
●Made by MIT SS304, SS316 material, suitable for various industry and food grade industry filtration.
●High flow capacity , high capacity.
●Shell strength calculation according to CNS standard.
●Using electrolyze for surface finished, no stain stick on the shell.
●Bottom cover and shell was sealed very tight, in order to prevnt water tank from leaking.
●High strength metallic materials, solid structure, to extend the usage of water tank.
●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment
 |
|
|
RO40UF
|
4
|
4
|
1
|
15
|
PF
|
20
|
PF
|
40
|
J
|
N
|
1
|
2
|
| Product code | Shell Material | RO Head Material | Clamp type | N1 Size | N1 Type | N2 Size | N2 Type | N3&N4 Size | N3&N4 Type | O-ring Material | Interior surface finished | Exterior surface finished |
| 4-304 6-316 |
4-304 6-316 N-Nylon |
1-One piece type 2-Two pieces type |
|
Detail
|
Weight
|
Length
|
Carton
|
Width
|
Height
|
|
RO40UF
|
8.5
|
1250
|
YES
|
170
|
165
|
