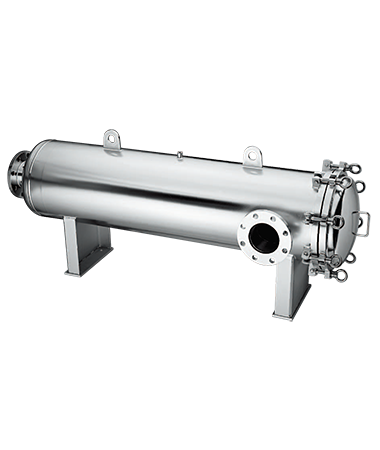

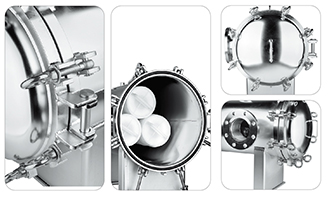

High Flow Rate Multi-Cartridges Filter Housing
HM
High Flow Rate Multi-Cartridges Filter Housing

Design P. 10kg/cm²      Operating P. 7kg/cm²
Design T.  100˚C           Operating T. 75˚C

Material：SUS304 SUS316 SUS316L
O-ring   ：EPDM/VITON/NBR/SILICONE/TEFLON+VITON
Surface finished：Acid-Washing,Electrolyze and Other unique surface finished.

High Flow Rate Multi-Cartridges Filter Housing
Features

●High flow design could satsify customers needs
●High flow housing designed for smaller shell body, reducing the installation cost and saving the site space
●High flow housing designed for horizontal installation can easy for cartridge replacement
●The diameter of high flow housing could change depends on filter cartridge rounds

Applications

●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment

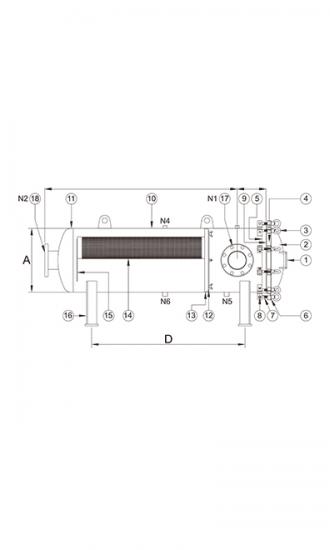

Specifications
Model
Length of Cartridge
A m/m
B m/m
C m/m
D m/m
E m/m
F m/m
G m/m
2HM
40"
Ø406
210
1351
1120
450
303
250
2HM
60"
Ø406
210
1861
1630
450
303
250
3HM
40"
Ø406
220
1391
1120
450
303
250
3HM
60"
Ø406
220
1901
1630
450
303
250
4HM
40"
Ø486
220
1406
1120
500
343
300
4HM
60"
Ø486
220
1916
1630
500
343
300
5HM
40"
Ø508
235
1395
1120
500
354
300
5HM
60"
Ø508
235
1905
1630
500
354
300
7HM
40"
Ø560
235
1406
1120
550
380
350
7HM
60"
Ø560
235
1916
1630
550
380
350
8HM
40"
Ø650
235
1425
1120
600
425
400
8HM
60"
Ø650
235
1935
1630
600
425
400
9HM
40"
Ø762
275
1506
1200
650
481
500
9HM
60"
Ø762
275
2016
1710
650
481
500
10HM
40"
Ø762
275
1506
1200
650
481
500
10HM
60"
Ø762
275
2016
1710
650
481
500
12HM
40"
Ø762
275
1506
1200
650
481
500
12HM
60"
Ø762
275
2016
1710
650
481
500
13HM
40"
Ø864
400
1601
1400
700
532
550
13HM
60"
Ø864
400
2111
1910
700
532
550
15HM
40"
Ø864
425
1626
1450
700
532
550
15HM
60"
Ø864
425
2136
1960
700
532
550
17HM
40"
Ø864
425
1626
1450
700
532
550
17HM
60"
Ø864
425
2136
1960
700
532
550
19HM
40"
Ø900
425
1633
1450
750
550
600
19HM
60"
Ø900
425
2143
1960
750
550
600



Purchase Code
2
HM
4
4
100
10K
E
1
2
QTY of Cartridge Product code Length of Cartridge Material In&Outlet size In&Outlet type O-ring Material Interior surface finished Exterior surface finished
2~19 4-40"
6-60" 		4-304
6-316
6L-316L 		100-4"
125-5"
150-6"
200-8"
350-14"
400-16" 		10K-JIS
150P-ANSI
PN10-DIN
J-Clamp
PF-BSPT-F
BF-BSPF-F
NF-NPT-F
PM-BSPT-M
BM-BSPF-M
NM-NPTM 		E-EPDM
V-Viton
N-NBR
S-Silicone
TV-Teflon+Viton 		1-Acid-Washing 1-Acid-Washing
2-Electrolyze
3-Polishing

Packing Detail
Detail
Carton
2~19HM
N/A
