Design P. 10kg/cm² Operating P. 7kg/cm²
Design T. 100˚C Operating T. 75˚C
Material：SUS304 SUS316 SUS316L
O-ring ：EPDM/VITON/NBR/SILICONE/TEFLON+VITON
Surface finished：Acid-Washing,Electrolyze and Other unique surface finished.
●Pressure loss is less as liquid flow rate adapts low speed design.
●Filtration efficiency of multi-bags filter housing is good as liquid flushs filter bag from the upper side, the filter bag would not floating

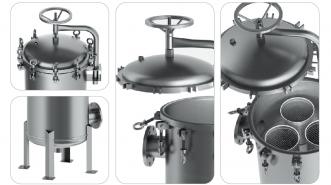

●Multi-bags filter housing uses strengthen eye bolt
●Multi-bags filter housing uses single seal and positive pressure type design
●Davit lid with turntable design offers convenience and energy-saving
●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment
 |
|
|
2
|
BFM
|
SS
|
4
|
80
|
10K
|
E
|
1
|
2
|
| QTY of Bag | Product code | In & Outlet Type | Material | In&Outlet size | In&Outlet type | O-ring Material | Interior surface finished | Exterior surface finished |
| 2~12 | 4-304 6-316 6L-316L |
50-2" 65-2-1/2" 80-3" 90-3-1/2" 100-4" 125-5" 150-6" 200-8" 250-10" |
E-EPDM V-Viton N-NBR S-Silicone |
2-Electrolyze 3-Polishing |
2-Electrolyze 3-Polishing |
|
Detail
|
Carton
|
|
2~12BFM-SS
|
N/A
|
