Design P. 15kg/cm² Operating P. 10kg/cm²
Design T. 100˚C Operating T. 75˚C
Material：SUS304 SUS316 SUS316L
O-ring ：EPDM/VITON/NBR/SILICONE/TEFLON+VITON
Surface finished：Acid-Washing,Electrolyze and Other unique surface finished.

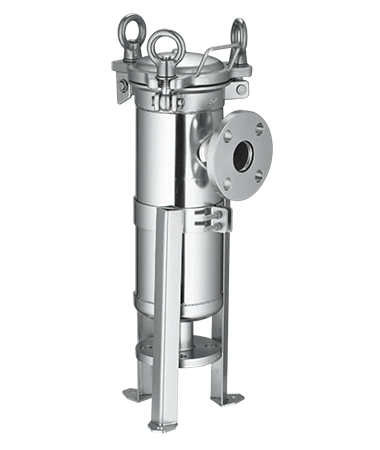

●High pressure bag filter housing design could satisfy customers needs

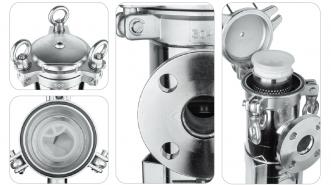

●Human easy-using top cover design matching SYS designed clamp offering easy clean and could change filter bags without using any tools
●Top cover was sealed with shell body preventing from leaking, its very good design for high pressure bag filter housing.
●High intensity basket with firmly structure protects filter bag and extend the life time
●Adjustable leg could be adjusted based on site pipeline
●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment
 |
|
|
BFH
|
3
|
4
|
25
|
10K
|
SB
|
E
|
1
|
2
|
| Product code | Length of Bag | Material | In&Outlet size | In&Outlet type | In & Outlet Type | O-ring Material | Interior surface finished | Exterior surface finished |
| 15-1/2" 20-3/4" 25-1" |
SS-Side In&Out |
E-EPDM V-Viton N-NBR S-Silicone |
2-Electrolyze 3-Polishing |
2-Electrolyze 3-Polishing |
|
Detail
|
Weight
|
Length
|
Width
|
Height
|
Carton
|
Bubble Foam
|
|
BFH-3
|
18
|
280
|
280
|
665
|
YES
|
NO
|
|
BFH-4
|
21
|
280
|
280
|
665
|
YES
|
NO
|
