T-Series
Low Pressure Cartridge Filter Housing
TK
Low Pressure Cartridge Filter Housing

Design P. 10kg/cm²     Operating P. 7kg/cm²
Design T. 100˚C           Operating T. 75˚C

Material:SUS304 SUS316 SUS316L
O-ring   :EPDM/VITON/NBR/SILICONE
Surface finished: Acid wash / Electrolyze and Other unique surface finished.

Low Pressure Cartridge Filter Housing

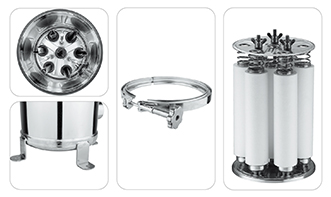

Features

●Low pressure design cartridge filter housing could satisfy customer's needs
●Cartridge filter housing using patented clamp  conforms with ergonomics
●Cup design could be used for DOE and SOE (222)
●Cartridge filter housing use patented spring design offering convenience on easy-using and filter element replacement
●Modularized cartridge plate design, making cartridge-arrangement accuracy. It would not crooked when giving pressure from upper side
●Pressure plate nut design can fasten without using any tools
●Thick and high density O-ring would not falling when closing the top cover,  offering convenience and safety
●Unique awarded with National  Environmental Protection Equipment Quality, product quality is guaranteed

Applications

●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment

Specifications
F m/m
Model
Length of Cartridge
A m/m
B m/m
C m/m
D m/m
E m/m
Ø236
TK3~4
10”
Ø180
120
280
340
300
Ø236
TK3~4
20”
Ø180
120
280
605
300
Ø236
TK3~4
30”
Ø180
120
280
860
300
Ø288
TK5~7
10”
Ø232
120
280
340
352
Ø288
TK5~7
20”
Ø232
120
280
605
352
Ø288
TK5~7
30”
Ø232
120
280
860
352
Ø288
TK5~7
40”
Ø232
120
280
1115
352



Purchase Code
TK
3
1
CF
4
50
10K
E
1
2
Product code QTY of Cartridge Length of Cartridge Cartridge Material In&Outlet size In&Outlet type O-ring Material Interior surface finished Exterior surface finished
3
4
5
6
7
1-10"
2-20"
3-30"
4-40"
CF-DOE
C5-222+Fin
C7-226
4-304
6-316
6L-316L
15-1/2"
20-3/4"
25-1"
40-1-1/2"
50-2"
65-2-1/2"
10K-JIS
150P-ANSI
PN10-DIN
J-Clamp
PF-BSPT-F
BF-BSPF-F
NF-NPT-F
PM-BSPT-M
BM-BSPF-M
NM-NPT-M
E-EPDM
V-Viton
N-NBR
S-Silicone
1-Acid-Washing
2-Electrolyze
3-Polishing
1-Acid-Washing
2-Electrolyze
3-Polishing

Packing Detail
Weight
Detail
Length
Width
Height
Carton
Bubble Foam
15
TK3~4-10"
280
280
665
YES
NO
18
TK3~4-20"
370
370
950
YES
NO
20
TK3~4-30"
370
370
1200
YES
NO
21
TK5~7-10"
370
370
665
YES
NO
25
TK5~7-20"
370
370
950
YES
NO
28
TK5~7-30"
370
370
1200
YES
NO
31
TK5~7-40''
370
370
1450
YES
NO
