Design P. 10kg/cm² Operating P. 7kg/cm²
Design T. 100˚C Operating T. 75˚C
Material：SUS304 SUS316
O-ring ：EPDM/VITON/NBR/SILICONE
Surface finished：Outside polished,Inside acid-washing and Other unique surface finished.

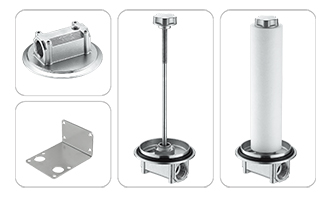

●Light and handy design could change filter cartridge without using any tools
●Patented head design with high density and attraction
●Cup design is suit for DOE and SOE (222) filter cartridge
●Quick-Clamp design easy operation could change filter cartridge without using any tools
●Filter cartridge nut design could be adjusted based on the filter cartridge length, no space limitation
●Adapting special oring with anti-leaking design is easy operation when open the cover.
●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment
 |
|
|
TS
|
1
|
CF
|
4
|
25
|
PF
|
E
|
1
|
3
|
| Product code | Length of Cartridge | Cartridge | Material | In&Outlet size | In&Outlet type | O-ring Material | Interior surface finished | Exterior surface finished |
| 1-10" 2-20" 3-30" |
CF-DOE C7-226 |
4-304 6-316 6L-316L |
20-3/4" 25-1" |
E-EPDM V-Viton N-NBR S-Silicone |
1-Acid-Washing 2-Electrolyze 3-Polishing |
1-Acid-Washing 2-Electrolyze 3-Polishing |
|
Detail
|
Weight
|
Length
|
Width
|
Height
|
Carton
|
Bubble Foam
|
|
TS1
|
4
|
175
|
175
|
450
|
YES
|
NO
|
|
TS2
|
5.5
|
170
|
165
|
690
|
YES
|
NO
|
|
TS3
|
7
|
170
|
165
|
935
|
YES
|
NO
|
